• AC operated (battery operation is optional)
  • LCD graphic transmissive display for indoor viewing
  • Lb/kg/oz/g weight display conversion
  • Dual-channel models with serial scale input
  • Mix and match platforms with console
  • Four setpoint outputs for counting
  • Two RS-232 ports for connecting peripherals
  • Ethernet TCP/IP
  • Scanner input (RS-232)
  • PC software utility (Revolution®) for setup
  • 150 item memory

Options:

  • Battery
  • USB for USB keyboard
  • WeighVault™ for Counterpart



Power Source:
Input: 100-240 VAC, 47-63 Hz, 5 watts, U.S. power cord
Output: 9-12 V, 1.5 A max

Excitation Voltage:
5 VDC

Analog Signal Input Range:
0-4.5 mV/V

Analog Specifications:
Grad minimum: .3 μV/grad
Input sensitivity: 1.5 μV/grad recommended
Zero adjustment range: 0-100% or per region settings
A/D conversion rate: 7.5, 15, 30 samples per second
Load cells per scale: 8 x 350 Ω; 16 x 700 Ω
Scale channels: 1 or 2
Linearity: ±0.017 full scale

Circuit Protection:
RFI, EMI, ESD protection

Digital I/O:
Four

Display:
Viewing area: 240 x 64 pixels, transmissive VGA liquid crystal display (LCD) with adjustable contrast

Keypad:
24 buttons, full keypad (alpha numeric)

Resolution:
Weight display resolution: up to 100,000 graduations
Counting resolution: 1/1,000,000

Communications and Setpoint:
Two RS-232 ports support up to 115,200 bps
20 mA
Ethernet port
Setpoint output

Status Annunciators:
PCS, motion, low battery, insuff, recomp, scale number, gross, net, zero

Units of Measure:
Pounds, kilograms, grams, ounces

Prints:
Standard EPL label format; format is changeable to work with virtually any printer

Optional Battery:
Type: Lithium-ion
Charge time: 6 to 8 hours
Charge cycles: 400-1,200
Estimated runtime: 24-32 hours with one 350 Ω load cell base

Operating Temperature:
32º F to 104º F (0º C to 40º C)

Operating Humidity:
85%

Physical Dimensions:
Indicator only (L x W x H): 12.25 x 6.25 x 4.0 in (311.15 x 158.75 x 101.6 mm)

Warranty:
Two-year limited warranty

Approvals:
NTEP CC 12-110
CE
UL listed
Measurement Canada



Dimensions
A 12.3 in (312.4 mm) C 3.94 in (100 mm)
B 6.17 in (156.7 mm)

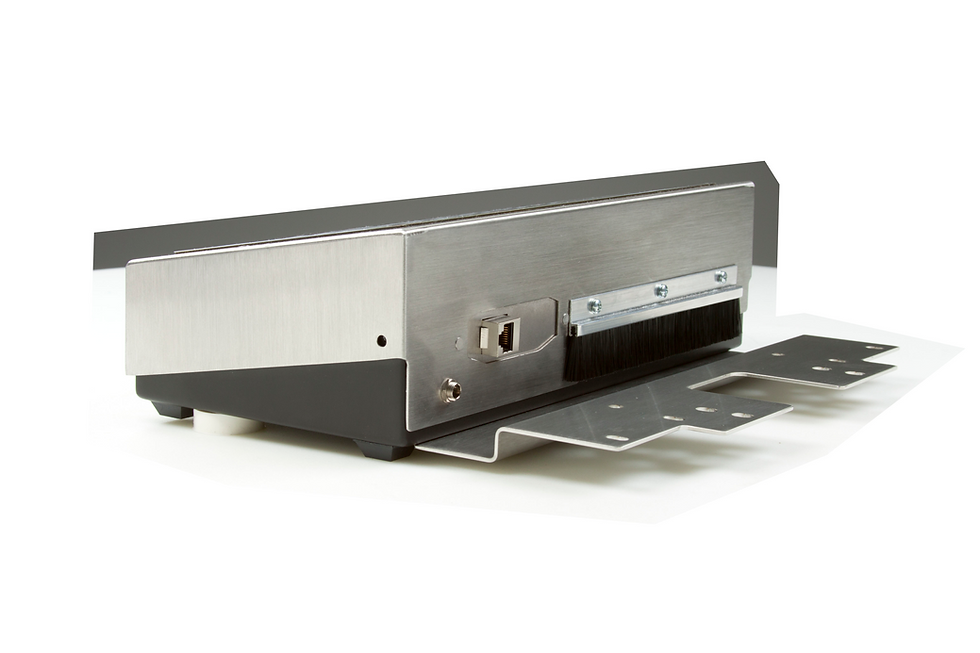

Counterpart® Configurable Counting Indicator

$1,025.00Price
  • More than a weight indicator and more than a counting scale, Counterpart from Rice Lake stands alone as a configurable counting indicator, able to convert almost any scale base into an intelligent piece-counting device—for parts of every shape and size.

    Unlike traditional counting scales, Counterpart uses Rice Lake’s simple configuration method  to adjust to the parameters and resolution of any attached scale base, whether a floor scale, bench scale, or laboratory balance. Counterpart also connects with most bar code scanners, label printers, and inventory management software, making it quite possibly the most versatile piece of equipment in any inventory setting.

    Rice Lake’s new configurable counting indicator does away with equipment learning curve. Users simply follow the keys left to right— zero, tare, and sample. View weight, piece weight, description and quantity all at the same time. And a ten-piece default sample is all that Counterpart ever requires.

    While Counterpart was designed for operator simplicity, it also provides the high-end features necessary for better inventory control and record keeping. Onboard Ethernet allows for connection to a PC where WeighVault® software for Counterpart can take your data storage and reporting capabilities to new heights.

    Counterpart can be purchased separately for operating one or more scale bases, or as part of a complete scale base and indicator package.
